Set Form Field Value

The Set Form Field Value action intelligently fills form fields based on their type. It automatically detects the field type and provides appropriate options for each.



When to use this action:

Automating repetitive form filling (registrations, applications)

Testing forms with various input combinations

Filling complex forms with dropdowns, checkboxes, and radio buttons

Uploading files through web forms

Setting values in fields that Send Keys can't handle properly

Bulk data entry from spreadsheets or databases

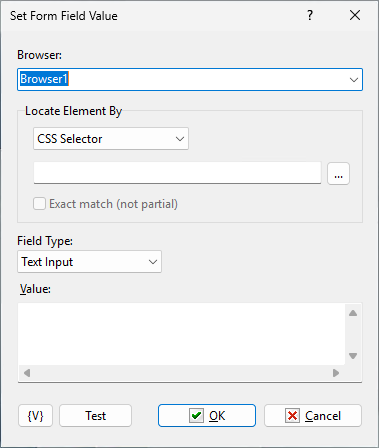

WA_SetFormFieldValue



Browser

Select which browser contains the form



Element Selection

Locate by: Choose how to find the form field

Select Element: Click to interactively choose a field

When you select a field, the action automatically detects its type



Field Type

The action supports these form field types:

Text Input - For text fields, textareas, email, URL, search fields. Supports multi-line text for textareas. Also works for date, time, and other text-like inputs

Checkbox  - you can use these actions:

oCheck - Ensure checkbox is checked

oUncheck - Ensure checkbox is unchecked

oToggle - Switch to opposite state

Radio Button - Check - Select this radio button. Automatically unselects other radio buttons in the group.

Select/Dropdown - Select value By:

oValue - The option's value attribute

oLabel - The visible text of the option

oIndex - Position in list (0-based)

Shows available options when element is selected

Supports multiple selections (comma-separated values)

Number/Range - For number inputs and range sliders. Enter the numeric value

File Upload - use the actions

oSet File - Choose file to upload

oClear File - Remove selected file

Use [...] button to browse for files



Smart Field Detection

When you use "Select Element" to choose a form field:

The action automatically detects the field type

Shows appropriate options for that type

For dropdowns, loads all available options

Pre-fills current values when applicable
