Process Loop

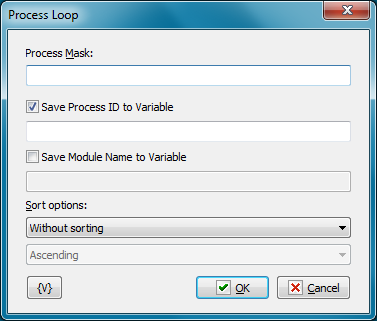

This loop allows you to enumerate running processes and save the process ID (PID) and the module name into variables at each iteration.



LoopsProcess



Process Mask

Specify the name of the EXE file. An empty string is equivalent to a mask *. *. You can specify the module name explicitly.



Save Process ID to Variable

Switch on this checkbox and enter the variable name to store the PID value



Save Module Name to Variable

Switch on this checkbox and enter the variable name to save the module name. If possible, the action retrieves the full file name (with the full path).



Sort Options

The list of processes can be sorted if necessary. Available options:

Without sorting

By process ID (PID)

By process Name

Direction of sorting – Ascending or Descending
