The action permits to extract a single node from the XML without using a cycle. You can specify a mask as a name of the node. If several nodes correspond to selected criteria, the action extracts the first node. The parameters of the action are like the parameters of XML Loop.

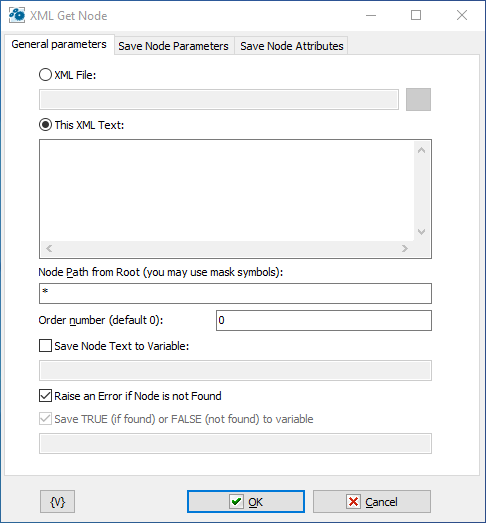

General parameters
XML File
Read XML from file. This option is recommended if XML contain encoded strings. When the action reads it from file it decodes all encoded strings automatically.
The most popular UTF-8 encoding. XML file should have corresponding header. For example:
<?xml version="1.0" encoding="utf-8"?>
XML
Specify the XML text which you want to analyze. The text can be specified explicitly or with using of variables.
Node Path from Root
The Node Path is a criterion of selecting of loops from an XML document.
Specify a path of nodes from/of a root that you want to enumerate. It is possible to use mask symbols:
•? - means any single symbol.
•* - means arbitrary number of symbols.
Examples of usage:
*\*\description
breakfast_menu\*\description
breakfast_menu\food\description
breakfast_menu\food\*
Order number
Enter the order number of node. Default is 0 (first node). XML file can contain nodes with the same names. Like records in database table. By default the action returns first matched element but you can specify another ordinal.
Save Node Text to variable
If you need to save a node text, switch on this checkbox and enter the variable name.
Raise an Error if Node is not Found
Switch on this checkbox if you want to raise an error. Otherwise the action put the warning message into the log.
Save TRUE (if found) or FALSE (not found) to variable
If you want to save search of necessary note to variable switch on this checkbox and input variable name below.

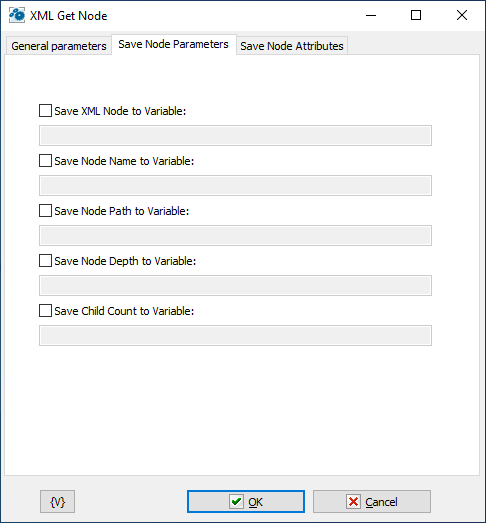

Save node parameters
The rest of node parameters are collected in this group of parameters.
Save XML Node to Variable
To save the whole node, switch on this checkbox and enter the variable name.
Save Node Name to Variable
To save the node name, switch on this checkbox and enter the variable name.
The fact of the matter is that sometimes you cannot know a node name beforehand. For example, this is possible when you select nodes according a mask:
breakfast_menu\food\*
Save Node Path to Variable
To save the path of a node, switch on this checkbox and enter the variable name.
Save Node Depth to Variable
To save the depth of enclosure of the node, switch on this checkbox and enter the variable name. A node depth is a number, 0 corresponds to a root element.
Save Child Count to Variable
To save quantity of child nodes, switch on this checkbox and enter the variable name.

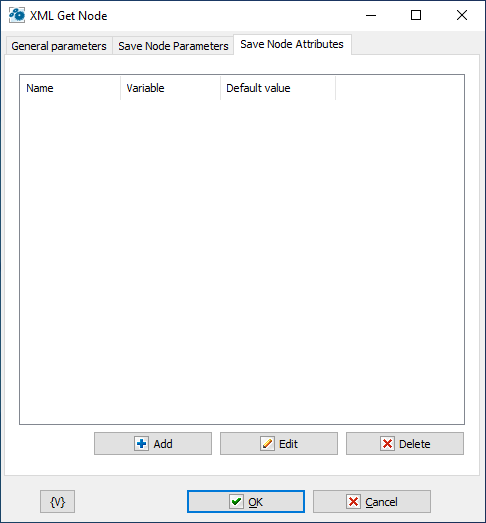

Save Node Attributes
On this tab one can specify the attributes which values are necessary to be saved into variables. It is necessary to specify parameters for every attribute:
•Name - The attribute name
•Variable - The name of the variable in which it is necessary to save the attribute value.
•Default value - The value which is written into a variable if the attribute is absent.
