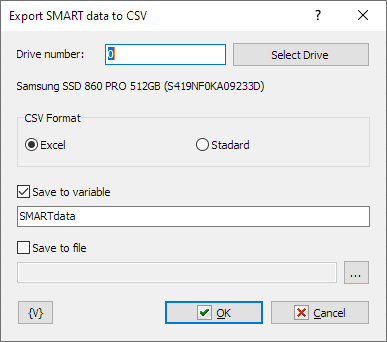

<< Click to Display Table of Contents >> Export SMART attributes |
This action exports SMART attributes in the form of a CSV table.
The table contains the following fields:
•Id – attribute identifier.
•Id(hex) – HEX representation of the identifier.
•Critical – indicator of a critical parameter.
•Name – attribute name.
•Value – attribute value.
•Worst – worst attribute value.
•Threshold – threshold value.
•Raw value – raw attribute value in the form of a sequence of six bytes in HEX representation.
You can then import this data into EXCEL or analyze it in a text editor.
CSV format
Two options are proposed:
•Excel – the default format. Separator – semicolon; quotes – double quotation mark; strict delimiter. This CSV format is used in MS EXCEL by default.
•Standard - Separator – comma; quotes – double quotation mark; non-strict delimiter.
Save to variable
Enable this checkbox and enter the variable name.
Save to file
Enable this checkbox and enter or select the file name for saving.
